PERMANENT MAGNET GENERATORS ( PMG )

( Home )

For small wind and hydro power generators, the use of Permanent Magnet
Generators is essential. The use of Toroidal Stator PMG with Airgap Windings
simplifies the manufacturing process of the
PMGs.

Four types of PMGs are actual:

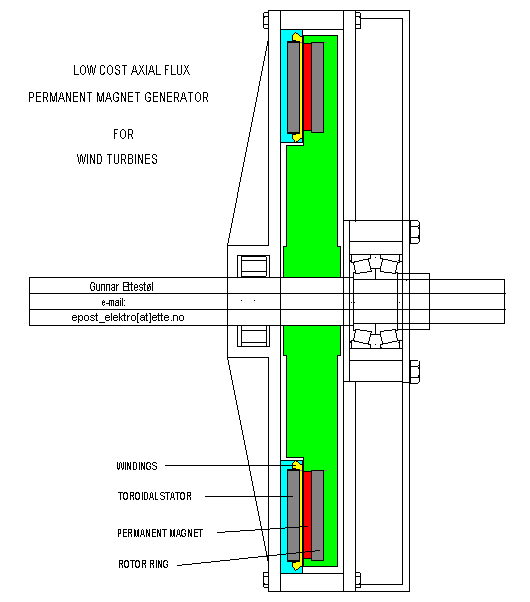

1) Single side Axial Flux type.

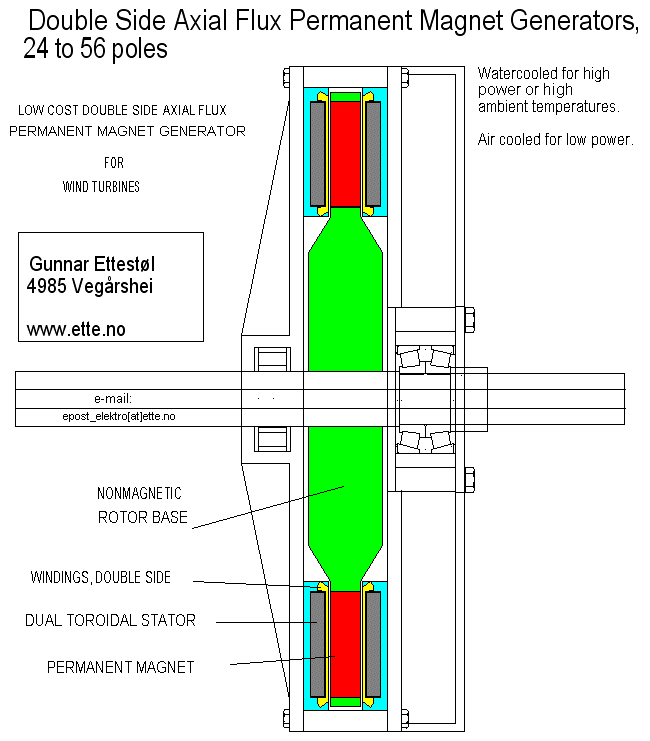

2) Double side Axial Flux type.

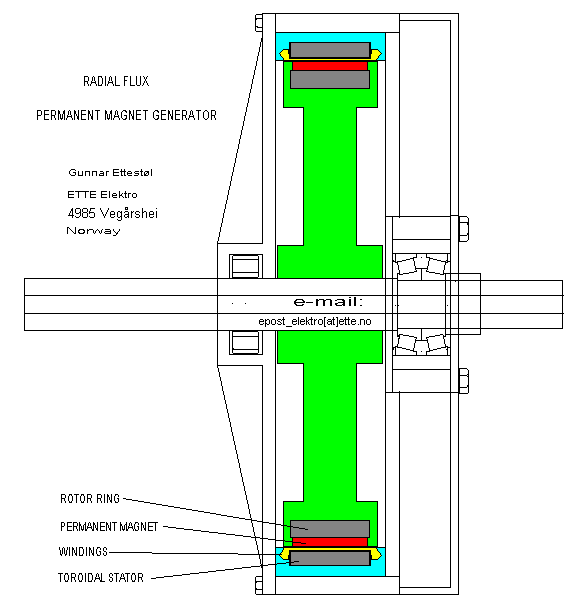

3) Single side Radial Flux type.

4) Double side Radial Flux type.
